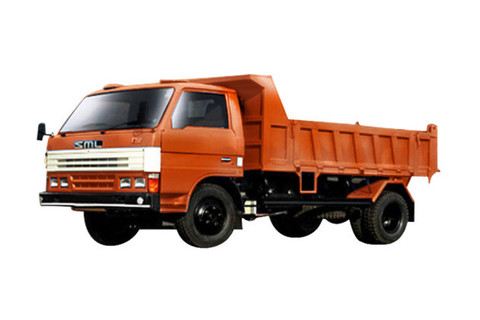

SML Isuzu Tipper BS-IV 3335/ZT54ES-Supreme
Be the first oneRate Now
This Model has expired
Price is for informational purposes only and the same may be subject to change. For details, please go through the T&C.
Key Specifications of Tipper BS-IV 3335/ZT54ES-Supreme
| Power | 99.1 |
| GVW | 8000 kg |
| Engine | 3455 cc |
| Fuel Tank | 180 Ltr |
| Payload | 5200 Kgs |
| Chassis Type | Chassis with Cabin |
| Body Option | Customizable |
Tipper BS-IV 3335/ZT54ES-Supreme Specification & Features
Performance
| Max Power | 99.1 |
| Displacement (cc) | 3455 cc |
| Fuel Tank (Litres) | 180 Ltr |
| Engine | SLT3&Numeral |
| Emission Norms | BS-IV |
| Max Torque | 296Nm |
| Engine Cylinders | 4 |
| Turning Radius (mm) | 3200 |
Dimension
| Wheelbase (mm) | 3335 mm |
| Axle Configuration | 4x2 |
| Size (Cu. M) | 4 |
Transmission & Loading Capacity
| Transmission | Manual |
| Payload (Kgs) | 5200 Kgs |
| GVW / GCW (Kgs) | 8000 kg |
| Kerb Weight (Kgs) | 2800 |
| Gear Box | 5-Speed |
| Clutch | 260 mm dia., Single plate diaphragm type |
| Power Steering | Optional |
Features
| Steering | Mechanical Steering |
Brakes & Suspension
| Brakes | Hydraulic Brakes |
| Front Suspension | Semi Elliptical tyrpe Multi leaf spring |
| Rear Suspension | Semi Elliptical tyrpe Multi leaf spring |
Body Option & Cabin Type
| Chassis Type | Chassis with Cabin |
| Body Option | Customizable |
| Cabin Type | Day Cabin |
Tyres
| Rear Tyre | 7.50 x 16 -16 PR |
| Front Tyre | 7.50 x 16 -16 PR |
Others
| Body Brakes | Hydraulic Vacuum assisted |
