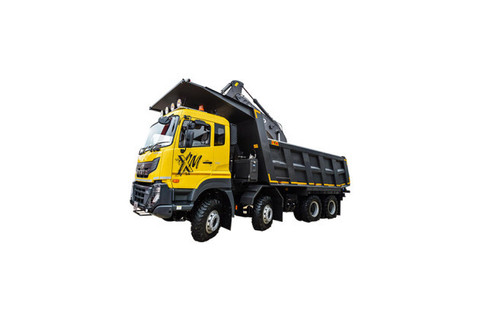

Eicher Pro 8031XM BS-IV 5285/BS-IV
Be the first oneRate Now
This Model has expired
Price is for informational purposes only and the same may be subject to change. For details, please go through the T&C.
Key Specifications of Pro 8031XM BS-IV 5285/BS-IV
| Power | 330 |
| GVW | 31000 kg |
| Engine | 7700 cc |
| Fuel Tank | 315 Ltr |
| Chassis Type | Chassis with Cabin |
| Body Option | Rock/Scoop Body |
Pro 8031XM BS-IV 5285/BS-IV Specification & Features
Performance
| Max Power | 330 |
| Displacement (cc) | 7700 cc |
| Fuel Tank (Litres) | 315 Ltr |
| Engine | Heavy duty turbocharger and intercooler in-line direct injection with SCR technology |
| Emission Norms | BS-IV |
| Max Torque | 1200 Nm |
| Gradeability (%) | 51 % |
| Max Speed (km/h) | 77 |
| Engine Cylinders | 6 |
| Turning Radius (mm) | 9875 |
Dimension
| Overall Length (mm) | 9075 |
| Overall Width (mm) | 2596 |
| Overall Height (mm) | 3732 |
| Ground Clearance (mm) | 306 |
| Wheelbase (mm) | 5285 mm |
| Axle Configuration | 8x4 |
| Size (Cu. M) | No |
Transmission & Loading Capacity
| Transmission | Manual |
| GVW / GCW (Kgs) | 31000 kg |
| Gear Box | 9-Speed |
| Clutch | Single Plate – Pull Type, power assisted, 430 mm diameter |
| Power Steering | Yes |
Features
| Steering | Power Steering |
| A/C | Yes |
| Cruise Control | No |
| Navigation System | No |
| Telematics | YES |
| Tiltable Steering | Yes |
| Arm-rest | No |
| Seat Type | Mechanical |
| Driver Information Display | Yes |
| Adjustable Driver Seat | No |
| Tubeless Tyres | No |
| Seat Belts | No |
| Hill Hold | No |
Brakes & Suspension
| Brakes | Air Brakes |
| Front Axle | Heavy duty forged I-beam Reverse Elliot type axle with stabilizer bar |
| Front Suspension | Parabolic suspension with double-action shock absorbers and stabilizer bar |
| Rear Axle | Heavy duty axle with hub reduction and two stage differential lock and stabilizer bar |
| Rear Suspension | Heavy duty inverted bogie suspension with conventional multi-leaf spring and upward U-bolt |
| ABS | Yes |
| Parking Brakes | Yes |
Body Option & Cabin Type
| Chassis Type | Chassis with Cabin |
| Body Option | Rock/Scoop Body |
| Cabin Type | Day and Sleeper Cabin |
| Tiltable Cabin | Yes |
Tyres
| Rear Tyre | 12 x 20 |
| Front Tyre | 12 x 20 |
Others
| No. Of Axles | No |
| Axle Types | No |
| Body Brakes | . |
| Chassis | Yes |
| Landing Gear | Yes |
| Electricals | 24 V |
| Floor Type | No |
| Body Material | No |
| Canopy Length | No |
| Water Tank Capacity (KL) | No |
| Water Tank Type | No |
| No. Of Valves | No |
| Pump Type | No |
| Bulker Type | No |
| Bulker Discharge Pipe | No |
| Bulker Air Inlet Pipe | No |
| Bulker Equipments | No |
| Bulker Electricals | No |
| Bulker Pressure | . |
| Floor Material | No |
| Side Board Material | No |
| Rear Board Material | No |
| External/Interior Surface | No |
| Refrigerating Unit | No |
| Temperature Range | No |
| Fog Lights | No |
