  • BharatBenz MD 914R BS-IV 3760/CAB BS-IV

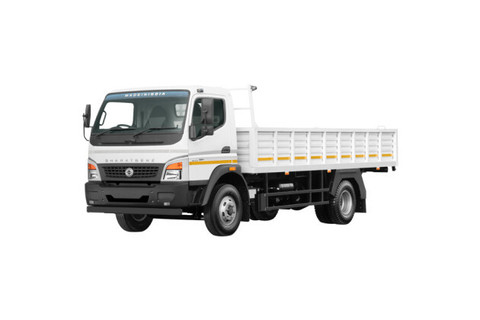

BharatBenz MD 914R BS-IV 3760/CAB BS-IV

Be the first oneRate Now
This Model has expired
Price is for informational purposes only and the same may be subject to change. For details, please go through the T&C.
Home
BharatBenz Trucks
MD 914R BS-IV
3760/CAB BS-IV

Key Specifications of MD 914R BS-IV 3760/CAB BS-IV

Power140
GVW9600 kg
Mileage. kmpl
Engine3907 cc
Fuel Tank200 Ltr
Payload. Kgs
Chassis TypeChassis with Cabin
Body OptionCustomizable

MD 914R BS-IV 3760/CAB BS-IV Specification & Features

Performance

Max Power140
Displacement (cc)3907 cc
Fuel Tank (Litres)200 Ltr
Engine4D34i
Emission NormsBS-IV
Max Torque420 Nm
Mileage. kmpl
Gradeability (%)27.8 %
Max Speed (km/h)80
Engine Cylinders4
Turning Radius (mm)6900

Dimension

Overall Length (mm)6380
Overall Width (mm)2205
Overall Height (mm)2420
Ground Clearance (mm)205
Wheelbase (mm)3760 mm
Axle Configuration.
Size (Cu. M)-
Length {mm (ft.)}4440(14.6 ft)

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs). Kgs
GVW / GCW (Kgs)9600 kg
Kerb Weight (Kgs).
Gear Box6-Speed
ClutchSingle dry plate, Hydraulic actuated, 330 mm
Power SteeringYes

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restYes
Seat TypeStandard
Driver Information DisplayYes
Adjustable Driver SeatYes
Tubeless TyresYes
Seat BeltsYes
Hill HoldNo

Brakes & Suspension

BrakesPneumatic Brakes
Front AxleIF 3.6, Reverse elliot
Front SuspensionSemi elliptic leaf spring with hydraulic shock absorbers
Rear AxleDANA S130, Fully floating, Hypoid gears
Rear SuspensionSemi Elliptic laminated Leaf Spring
ABSNo
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Rear Tyre8.25 X 16 - 16 PR
Front Tyre8.25 X 16 - 16 PR

Others

No. Of AxlesNo
Axle TypesHypoid gears
Body BrakesYes
ChassisYes
Landing GearMO 36 - 6F+1 R, Mechanical, Synchromesh gears
Electricals12V 75 Ah
Floor Type-
Body Material-
Canopy Length-
Water Tank Capacity (KL)-
Water Tank Type-
No. Of Valves-
Pump Type-
Bulker Type-
Bulker Discharge PipeNA
Bulker Air Inlet Pipe-
Bulker Equipments-
Bulker Electricals-
Bulker PressureNo
Floor Material-
Side Board Material-
Rear Board Material-
External/Interior Surface-
Refrigerating UnitNA
Temperature Range-
Fog LightsNo
